PET Plastic Bottle Carbonated Beverage Cold soft drink filling line

Place of Origin : China,JiangSu,Zhangjiagang

Brand Name : FillPack

Certification : CE & ISO & TUV & SGS

Model Number : DCGF24-24-8

MOQ : 1 set

Price : Negotiation

Packaging Details : Wooden Case Package

Delivery Time : 30 Working Days After Receiving Your Deposit Payment

Payment Terms : TT & L/C

Supply Ability : 20 sets/month

Name : PET Plastic Bottle Cold Filling Production Line

Material : Food stage stainless steel

Capacity : 6000-8000bph

Bottle Volume : 0.25-2.5L

Control : PLC & touch screen control

Suitable Bottle : PET bottle

Contact Now

PET Plastic Bottle Cold Filling Production Line For Carbonated Beverage Drink

Quick Detail:

Name: PET Plastic Bottle Cold Filling Production Line For Carbonated Beverage Drink

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 6000-8000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.25-2.5L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .

Description:

1. This PET plastic bottle cold filling production line for carbonated beverage drink has a compact structure, perfect control system, easy to operate and highly automated.

2. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

3. By adopting high speed filling valve, the liquid level is precise and have no waste. That guarantees the demand of filling technology.

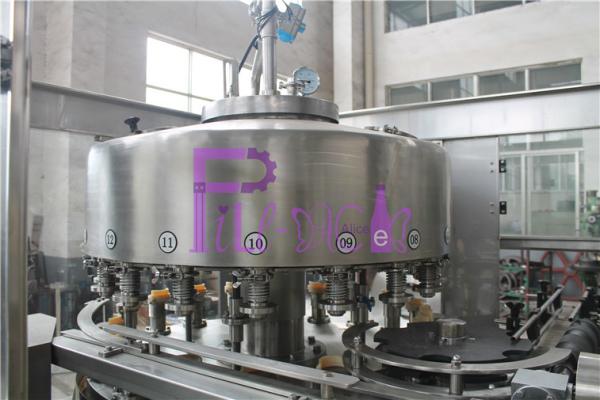

4. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

5. This machine has a high efficient cap arranging system, perfect cap feeding and protection device.

6. Equipped with perfect clean management system to ensure the bottle clean.

7. Only by changing the star-wheel, can realize to fill the changed bottle shape.

8. The machine adopts perfect overload protective device can ensure the operator and machine safe.

9. This automatic carbonated drink filling machine adopts adjustable frequency converter.

10. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.

11. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

12. The electric components and pneumatic components are all introduced from world famous brand products.

Specifications:

Model DCGF12-12-4 DCGF 18-18-6 DCGF 24-24-8 DCGF G32-32-10
Production B/H(600ml) 3000-4000 4000-6000 6000-8000 8000-12000
Bottle standard Neck: φ50-100mm Height:150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle (kg/h) 1300 2000 3000 4000
Spraying position 4 7 10 14
Dripping bottle position 3 5 8 10
Filing precision +5MM
Gas source pressure 0.4Mpa
Gas consumption(m³/min) 0.3 0.4 0.5 0.7
Total power(KW) 4.2 4.5 5 6.2
Total weight (T) 2 2.5 3 4
Dimension (L*W*H)mm 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100

Competitive Advantage:

1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project

Company description

Zhangjiagang City FILL-PACK Machinery Co., Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.

At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.

Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
